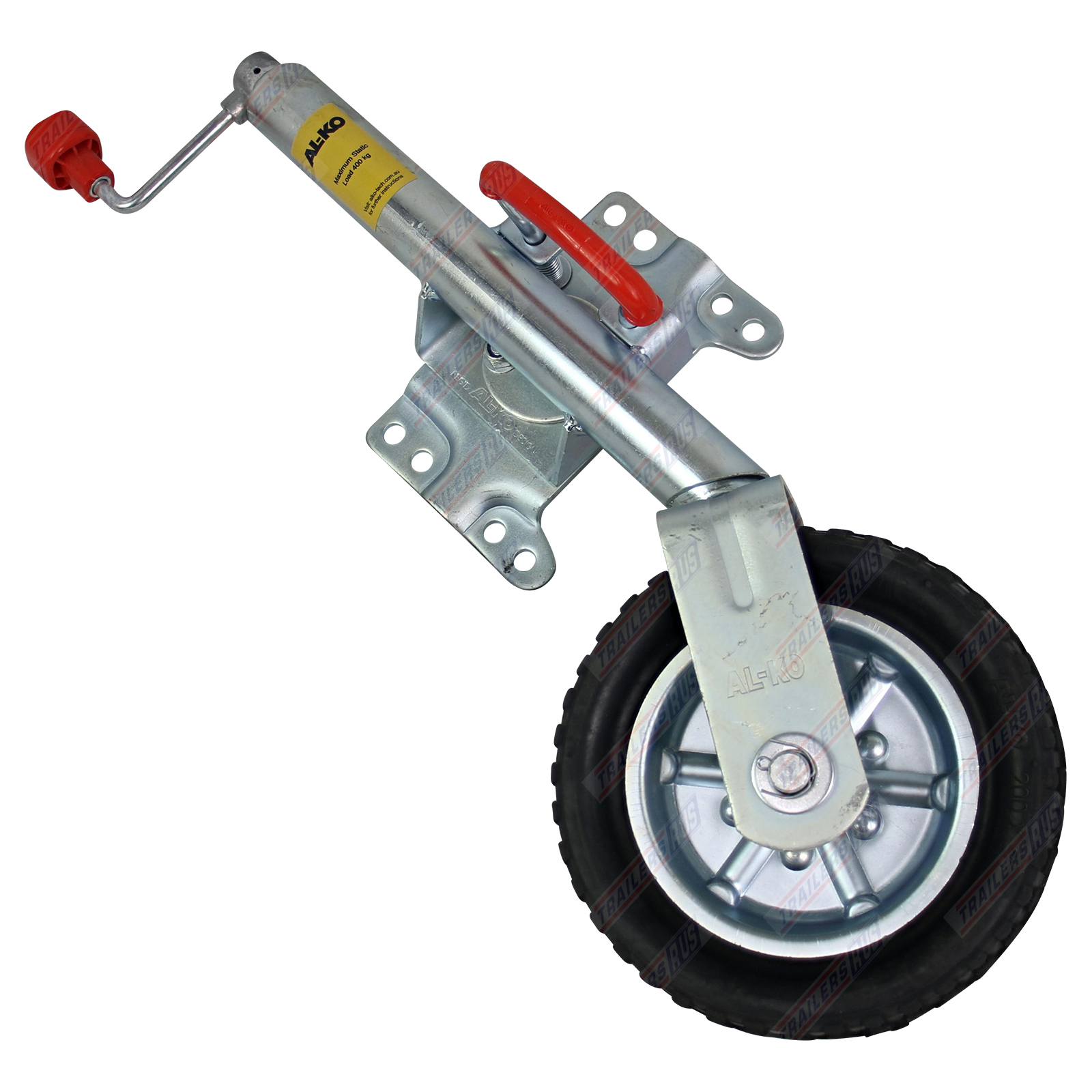

This Premium ALKO Swing Up Jockey wheel is designed to be an easy to use Weld-On or Bolt-On addition for your camper or trailer. Simply release the handle to rotate it in to a suitable travelling position.

Specifications
Static Capacity 400Kg
Swivel Mount Bracket
Tube O.D 48mm
Wheel Size (D) 250mm Dia.
Overall Height Closed (H1) 630mm
Overall Height Open (H2) 880mm
Height from Center of Bracket to Ground Closed (G1) 320mm
Height from Center of Bracket to Ground Open (G2) 570mm

Mounting Bracket Bolt Hole Distances
(U1) 63mm
(U2) 113mm
(U3) 88mm
(W) 185mm

Please see image for schematic specifications

SKU 623660XP3
Brand ALKO
Shipping Weight 10.2000kg
Unit Of Measure ea
