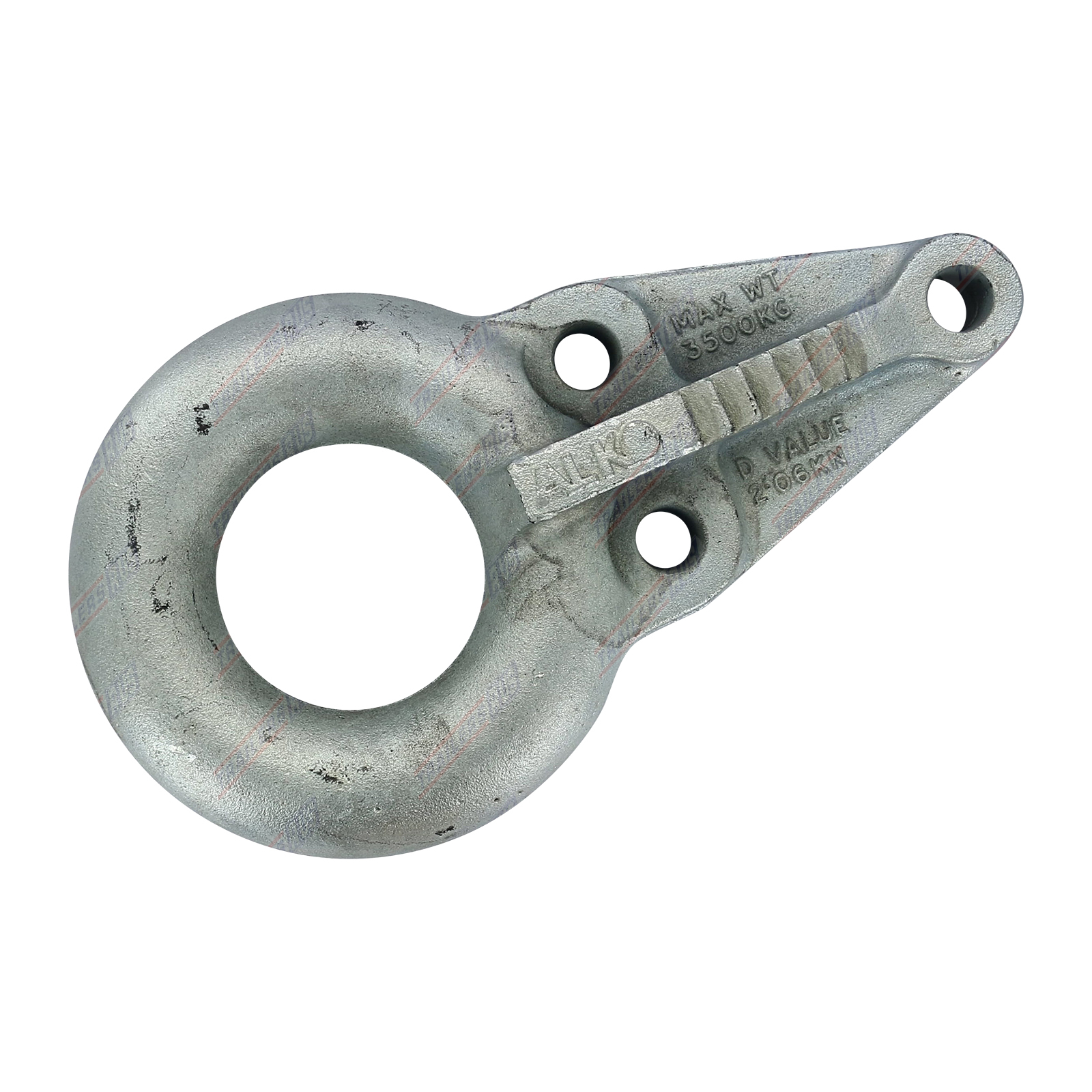

These Alko Ring Couplings are most commonly used in applications where the tow vehicle is a heavy commercial truck.

Features:
When used in a commercial or defence department application, often a 75 mm ring type towing eye is requested.
This coupling style is much like a ball style coupling, but replaces the 50mm Towball receiver with a 75mm Inside Diameter ring. This ring is then attached to a Pintle Hook fitted to the towing vehicle.

Specifications:
Rating: 3500kg
Ring Size: 75mm (3")
Mounting Hole: 103mm (L) x 56mm (W)
Mounting Hole Diameter: 16.8mm
3 Hole
Surface Finish: Zinc Plated
Ring Centre To First Mounting Hole (Nominal): 86mm

SKU 614304
Brand ALKO
Shipping Weight 5.2000kg
Unit Of Measure ea
