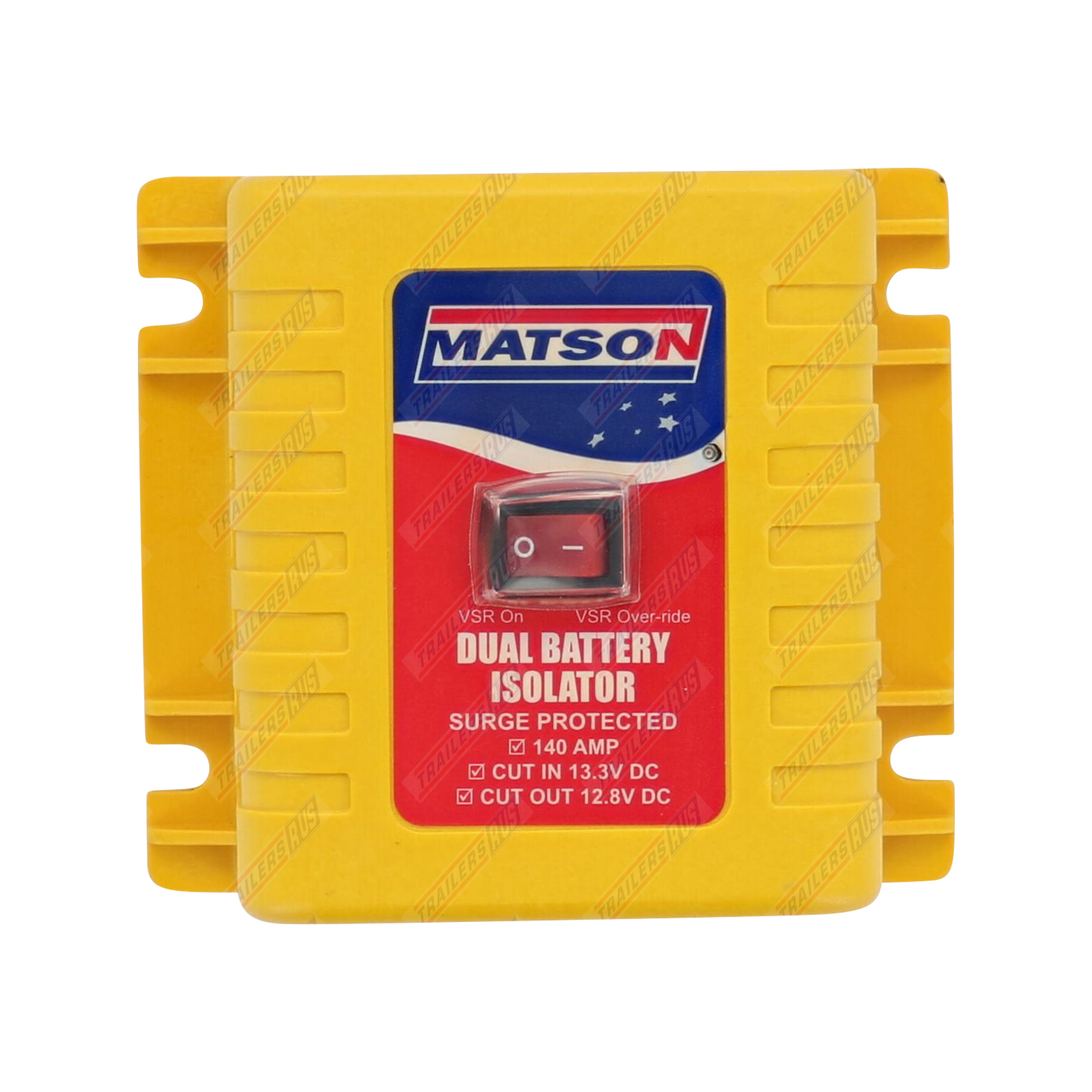

A simple isolator for dual battery systems giving you piece of mind that the 2nd battery will be charged and ready to go when needed. Allows two batteries to be charged at the same time and then isolates them from each other when the vehicle is turned off.

Simply run a lead from the main battery to the positive terminal in the dual battery isolator then another lead from the other terminal to the second battery.

Connect the earth lead to an adequate spot on the vehicle and bolt down the isolator unit and the job is done.

How it works:

The relay stays open, isolating the two batteries when the engine is first started, remaining open until the primary battery has reached a preset voltage of 13.3V.

The relay then closes, allowing the two batteries to be charged together.

When the engine is stopped, the voltage returns to normal levels allowing the relay to open again.

This separates the two batteries and eliminates the possibility of discharging the primary/starting battery.

Features and Specifications:

Super Compact and Easy to Install

Emergency Over-ride Switch

12 Months Warranty

140 Amp

Cut in 13.3V DC

Cut out 12.8V DC

Size: 88mm x 78mm

Mounting Holes: 80mm Left to Right
                                       50mm Top to Bottom

SKU MA98404
Brand Matson
Shipping Weight 0.3100kg
Unit Of Measure ea
