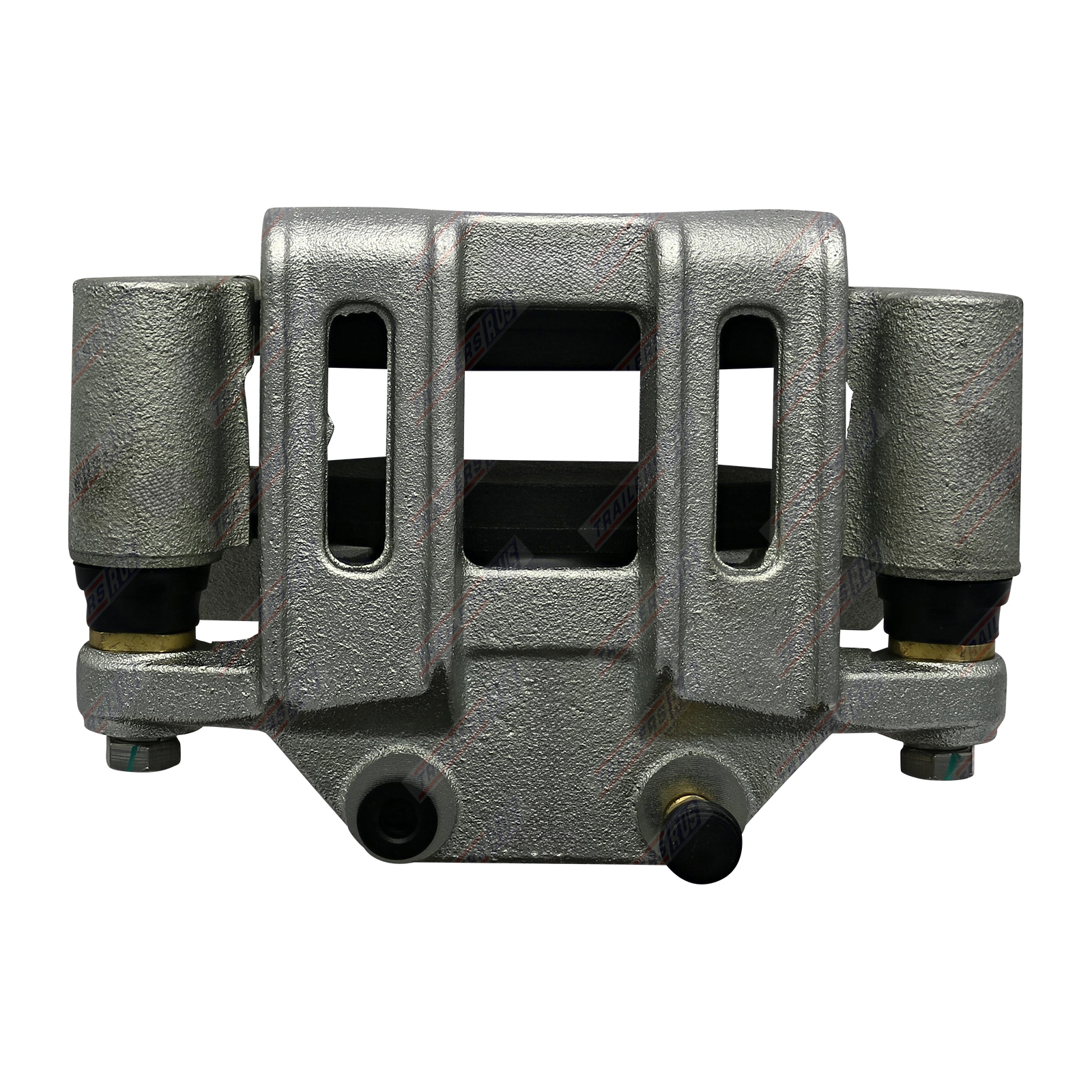

These Hydraulic brake calipers are made of high quality Galvanised Steel for corrosion resistance making them ideal for marine trailers. Designed to be a replacement for a Trigg A200 Calliper but features a Stainless Steel Piston. Hydraulic brake systems are most common on boat Trailers that are rated above 2000Kg due to their ability to keep working when exposed to water. When your trailer is rated above 2000Kg in a dual Axle setup you will need to have hydraulic brakes installed on both Axles. Hydraulic Calipers are often preferred when using a dual axle system due to the simplicity connecting multiple calipers with hydraulic brake lines.
Trailers with loaded weights exceeding 2000kg require independent control and breakaway facility, causing the brakes to automatically be activated should the towing vehicle and the trailer become disconnected in transit.

Please Note: This caliper has no thread in its mounting holes.

Specifications
To suit 10" Inch or 12" Inch x 15mm Thick brake discs
Suits 3/8" UNF Brake Line fitting
Stainless Steel Piston
Brake Pads Included
Mounting bolt distance (Centre to Centre) - 89mm

PLEASE NOTE
To ensure your brake line will seat properly you may require a Hydraulic Union HU4 with a Copper Washer CW1

SKU CH300G
Brand TRU
Shipping Weight 3.5000kg
Unit Of Measure ea
