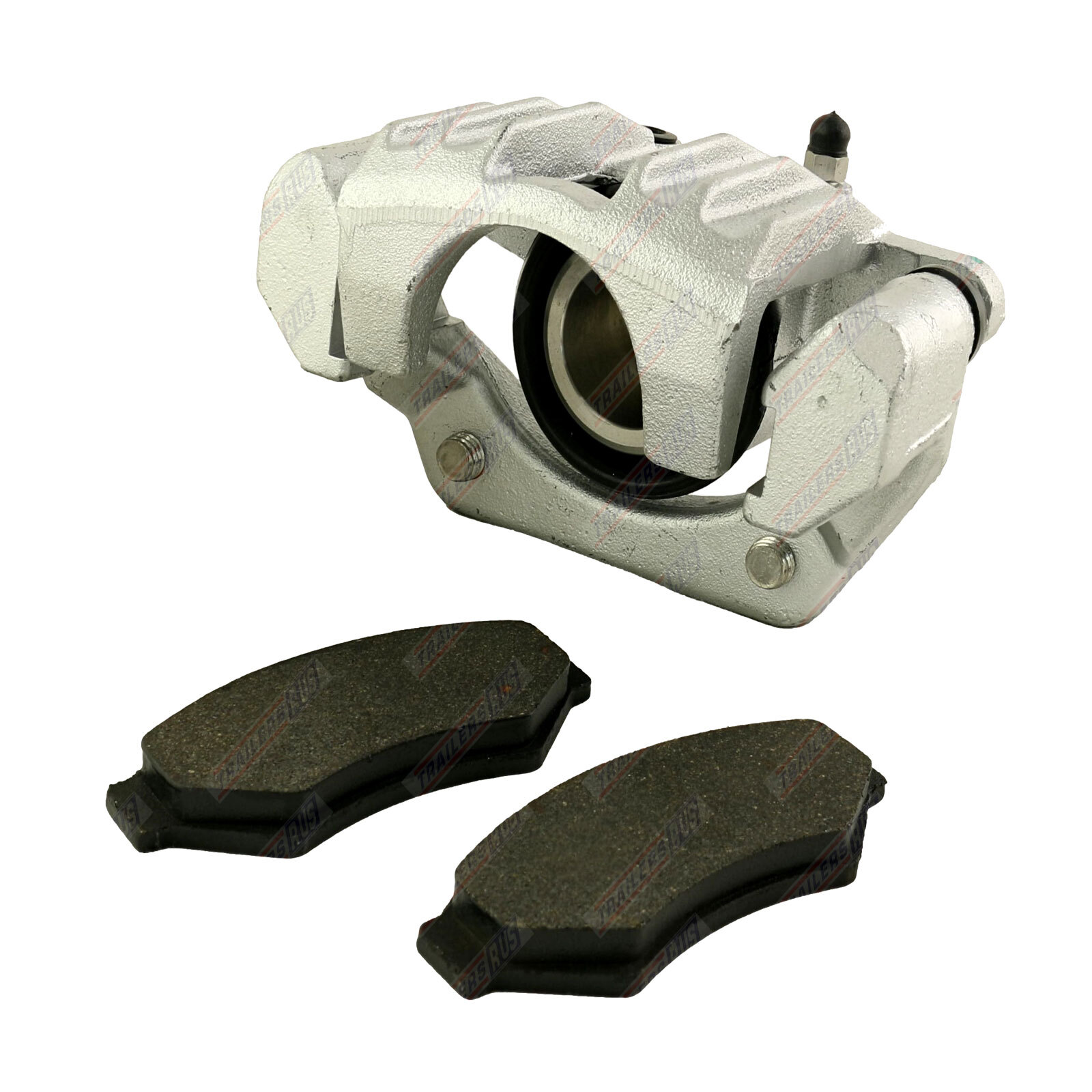

These Brake Calipers were designed by Alko for use with a Hydraulic Braking System on your Box Trailer, Boat Trailer or Caravan. The Alko brand is synonymous with high quality trailer parts designed for longevity and durability. Hydraulic brake systems are most common on boat Trailers that are rated above 2000Kg due to their ability to keep working when exposed to water. When your trailer is rated above 2000Kg in a dual Axle setup you will need to have hydraulic brakes installed on both Axles. Hydraulic Calipers are often preferred when using a dual axle system due to the simplicity connecting multiple calipers with hydraulic brake lines.
Trailers with loaded weights exceeding 2000kg require independent control and breakaway facility, causing the brakes to automatically be activated should the towing vehicle and the trailer become disconnected in transit. AL-KO IQ7 fulfils this legal requirement.

Single Unit - Suits One Wheel

Features
Brake Pads Included
Dacromet Coated and Fitted with Special Pistons that will not Rust
Suitable for Disc Hubs and Rotors of Thicknesses from 12mm to 15mm
Hydraulic disc brake calipers are typically actuated with over ride couplings or an electric over hydraulic actuation system such as AL-KO IQ7

Specifications
Recommended Maximum Loads
13 and 14 inch rims – 1600kg per axle
15 and 16 inch rims – 1400kg per axle

Mounting Detail 12mm H.T. X 45mm Set Screws. 88.9mm (3.5”)
Recommended Operating Pressure is 6.9 mpa (1000psi)

SKU 341000
Brand ALKO
Shipping Weight 4.2500kg
Unit Of Measure ea
