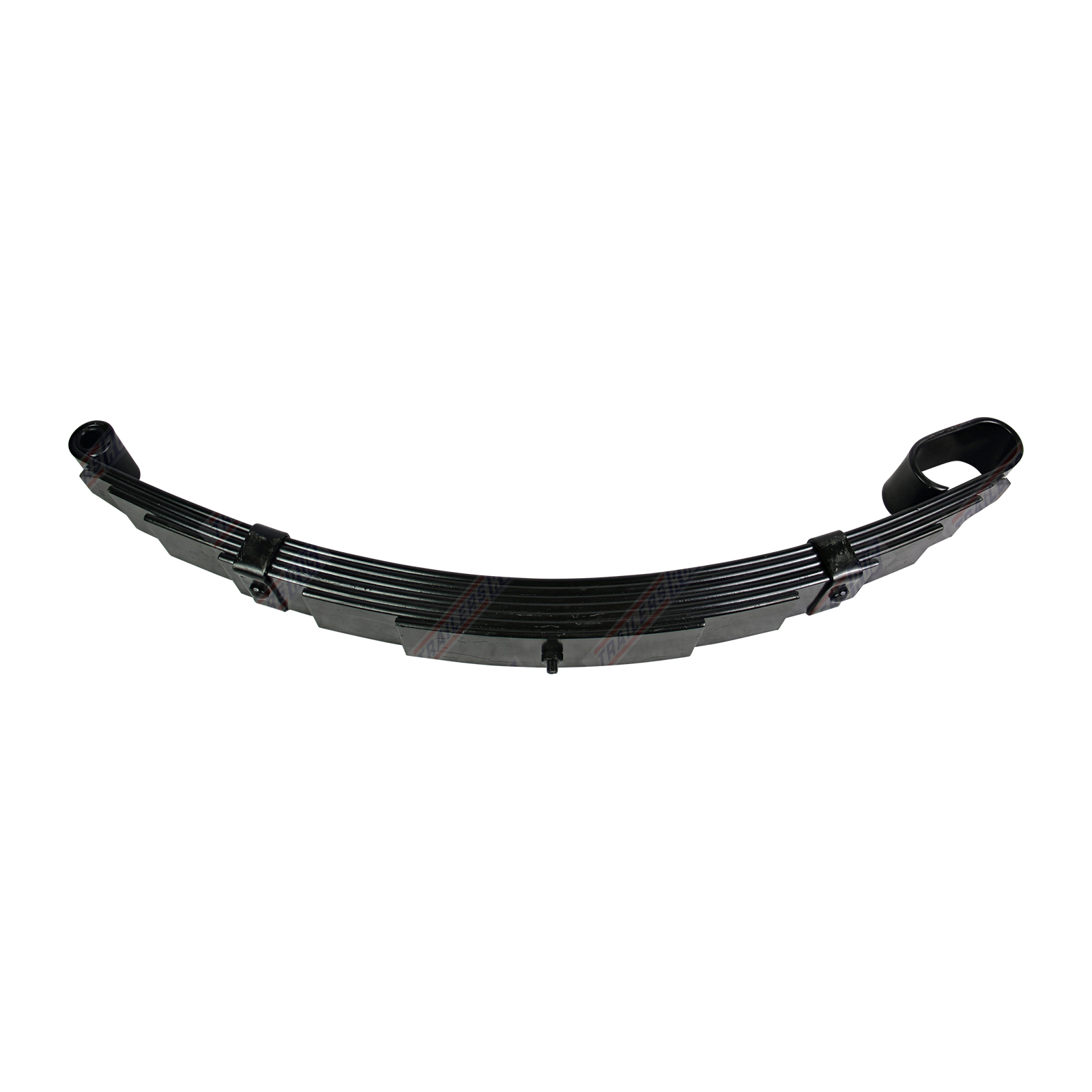

This single replacement roller rocker spring is designed to suit a 3000Kg 7 Leaf Centre Spring Bolt Roller Rocker Setup on Tandem or Tri-Axle Trailers. It is designed to be a Heavy-Duty, Robust, and Reliable replacement trailer part you can trust for the long haul. This type of Load Rating is ideal for Horse Floats, Agricultural Towing, and all manner of Industrial and Work trailers.

This Spring has a Spring Bolt Located in the Centre of the Roller Rocker Spring

If you are looking for Off-Set Centre Bolt Roller Rocker springs you can find them here
SRR7OFF300
SRR7OFF390


Specifications
Spring Bolt in Centre of Spring
Length from Small Eye to Oval Eye 690mm
Width of spring 60mm
Ideal for 15'' or 16'' Inch Wheels
3000Kg Rating When part of a full set
7 Leaf
Low Impact and Abrasion Resistant
Load Sharing Design
Resistant to Wear and Tear

Advice for Install
Weld the Centre Bracket in to position
Install Centre Rocker Arm to Bracket
Attach Springs to the Centre Arm
Bolt Front and Rear Hangers to the springs
Stretch Front spring as far as it will go and weld on to your trailers chassis
Stretch Rear spring as far as it will go and weld on to your trailers chassis

SKU SRR7CB
Brand TRU
Shipping Weight 11.2000kg
Unit Of Measure ea
