Item: 626191

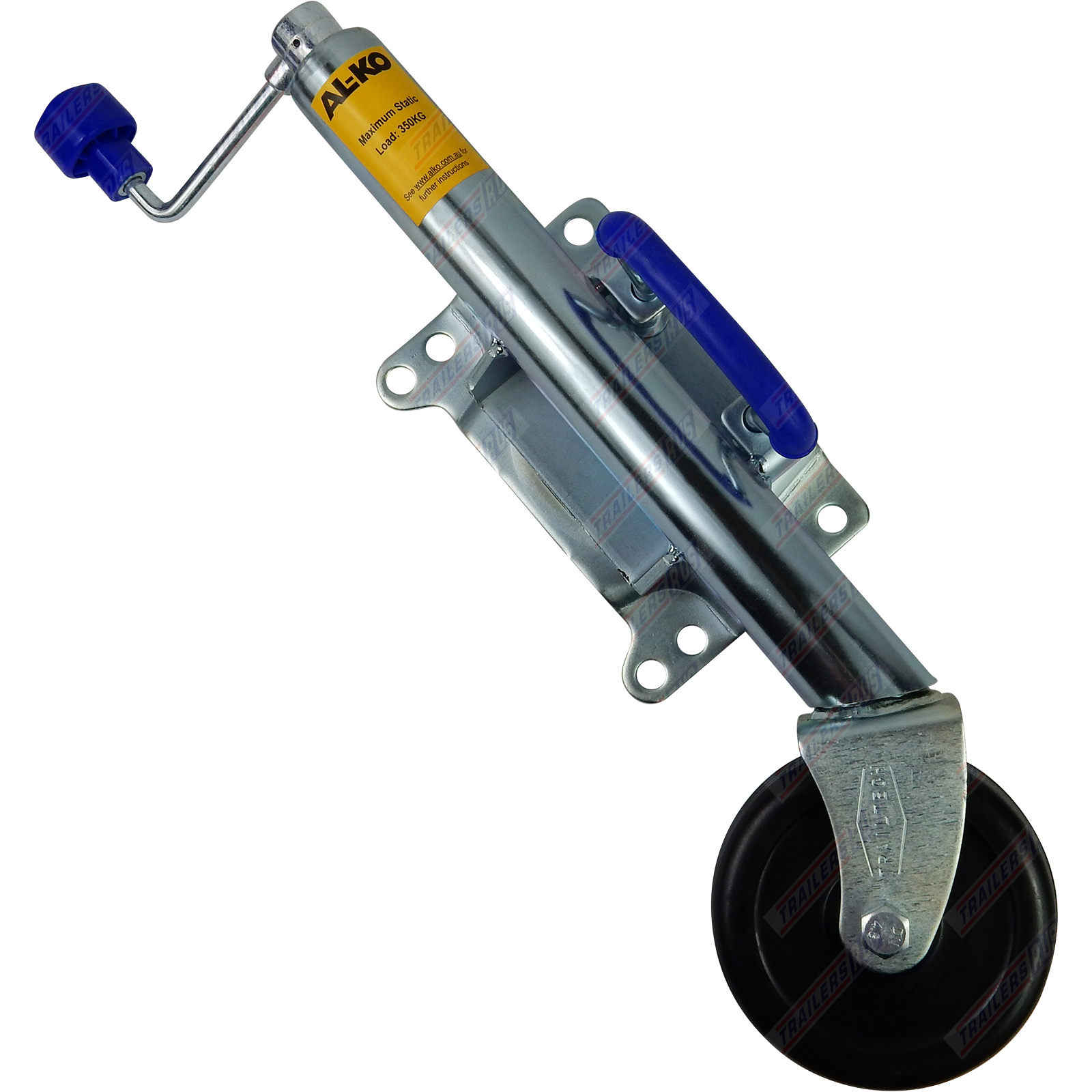

Trailer Jockey Wheel Swivel 6'' Inch AL-KO Trailtech Swing up Solid Rubber Wheel Blue Handles #626191
$58.00
or 4 interest-free payments of $14.50 fortnightly with Afterpay and receive your order now.
This AL-KO Trailtech 6" Jockey Wheel is suitable for Trailers, Camper trailers, Caravans, Boat Trailers, Toy Haulers, Car Trailers and more
No need to remove it from the trailer you can just pull the release handle and the jockey wheel rotates into a suitable travelling position.
Also has a selection mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar.
Features:
Blue Handles
Solid Rubber Wheel
Quality Zinc Finish
Max Tow Ball Load 350kg / 770lbs
Specifications:
Static Capacity: 350kg
Outer Tube Dia.: 48mm
Weight: 6.75kg
Wheel Dia.: 150mm
Mounting Hole Dia.: 14mm
Min Spacing: 63mm
Max Spacing: 113mm
Height Closed: 510mm
Height Open: 760mm
Mount holes per side: 4
Bottom of Wheel to Mounting Plate Centre when Closed: 310mm
Bottom of Wheel to Mounting Plate Centre when Closed: 560mm
NOTE: There is NO u-bolt fitting kit included
| SKU | 626191 |
| Brand | ALKO |
| Shipping Weight | 6.3500kg |
| Unit Of Measure | ea |
